Min. Ordni:1 Piece/Pieces
Mudell Nru.: RS320NET-ND10
Size: 32"
Brightness: 1000 nits
Resolution: 1920*1080
Operating Temperature: 0~50°C

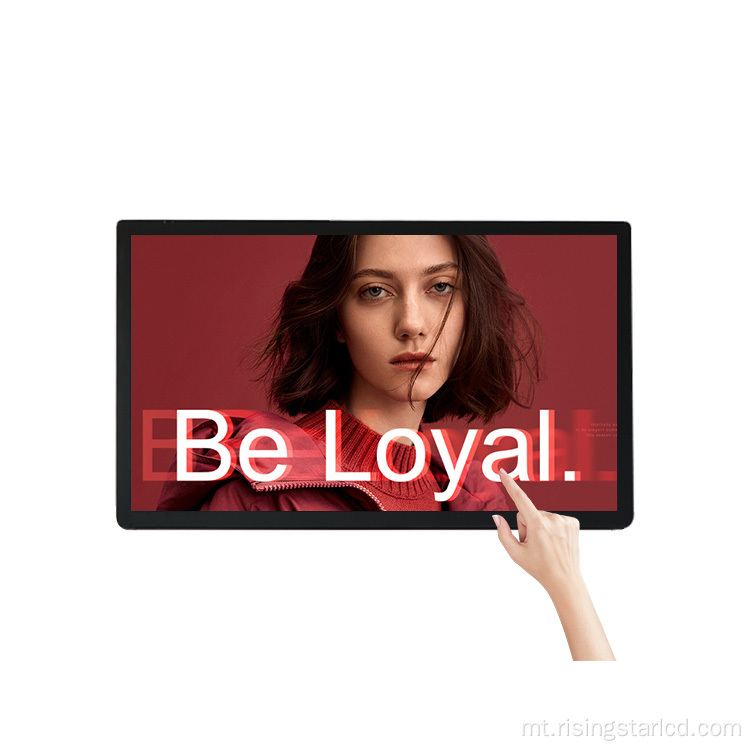

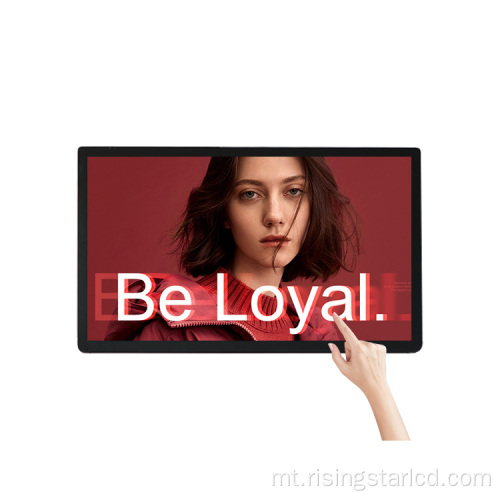

Il-monitor touch screen ta '32 pulzier jipprovdi żona ta 'wiri akbar għal wiri interattiv ta' applikazzjonijiet oħra.
Dawn l-iskrins tal-mess huma komunement użati f'ambjenti kummerċjali bħal ħwienet bl-imnut, ristoranti, u uffiċċji, kif ukoll f'varjetà ta 'industriji bħal gabbani interattivi, sinjali diġitali, u applikazzjonijiet oħra li jeħtieġu wirjiet kbar ta' touch.
Bit-teknoloġija Touch Responsive tagħhom, dawn l-iskrins jipprovdu lill-klijenti b'varjetà ta 'esperjenzi interattivi għan-navigazzjoni tal-kontenut, l-għażla tal-għażliet, u jinteraġixxu ma' informazzjoni diġitali.
Karatteristika tal-Prodott:
1.TFT LCD Touch Screen Panel
2.1920 * 1080 Riżoluzzjoni (3840 * 2160 Mhux obbligatorju)
3.outdoor użat, il-luminożità minn 500nits għal 3500 nits mhux obbligatorji
4. pannell tat-touch kapaċi, mgħotti bi ħġieġ ittemprat ta '2mm għall-prova tal-vandali
5.VGA HDMI DVI USB Interface
6.Igh-Mainboard tal-Prestazzjoni, 7/24 Operazzjoni Kontinwa
7.Support 12-24V Vultaġġ wiesa '
8.Ultra-irqiq ta 'quddiem tal-bezel 3mm, ideali għall-immuntar inkorporat
Embedded Lcd screen with touch |
|
Model |
RS320NET-ND10 |
Waterproof | No. (Waterproof IP55/ip65 optional ) |
LCD Type | 32inch TFT-LCD |
Video Input | VGA and DVI and HMI ect (customized) |
OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
Power Supply |
Type: External brick ; Input (line) voltage: 100-240 VAC, 50-60 H Output voltage/current: 12 volts |
Mount Interface |
1) VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
LCD Specification |
|
Resolution | 1920*1080p FHD |
Viewing angle (v/h) | 89/89/89/89 |
Contrast | 1300:1 |
Luminance(cd/m2) | 1000 (500-3500nits optional) |
Response Time | 6s |
Support Color | 16.7M colors |
Backlight MTBF(hr) | 50000 |
Touchscreen Specification |
PCAP |
Type | 10 point capacitive touch |
Light Transmission | 92% |
Touch Life Cycle | 50 millions |
Touch Response time | 16ms |
Touch System Interface | USB interface |
Environment |
|
Temperature | Operating Temp. : 0~50°C Storage Temp. : -20~60°C |
Humidity |
Operating RH. : 20%~80% Storage RH. : 10%~90% |
