Min. Ordni:1 Piece/Pieces
Size: 10.1 inch
Brightness: 1000 nits
Contrast Ratio: 1000:1
Resolution: 1280*800
Operating Temperature: -10 - 50°C

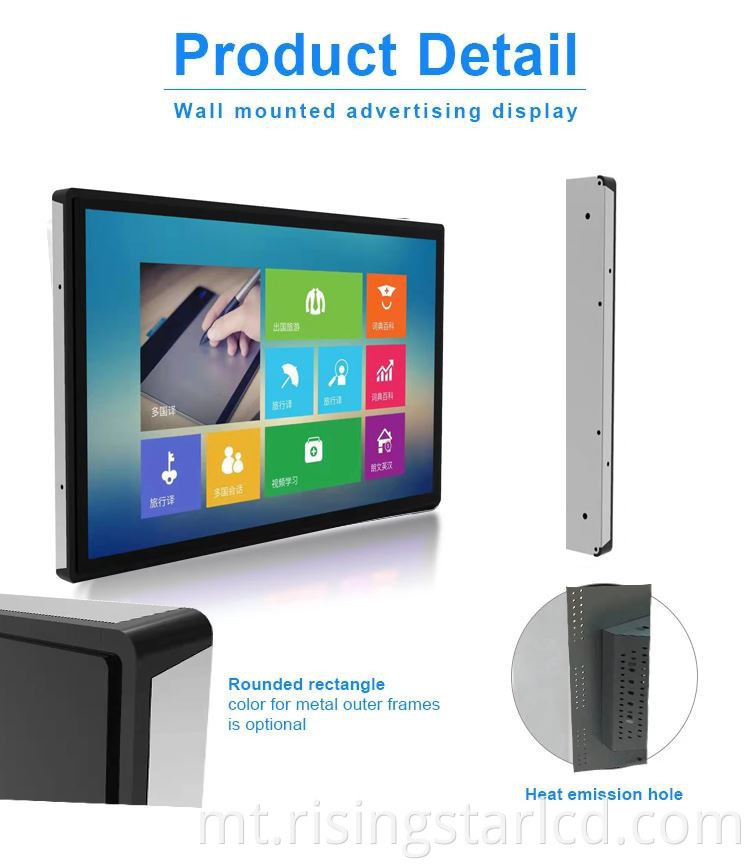

Wirjiet ta 'barra inkorporati ta' barra, 10.1 pulzier TFT 1000 NITS LCD Monitor. Il-kontenut muri fuq l-iskrin jista 'jidher b'mod ċar f'ambjent imdawwal sew, jista' jintuża ma 'kull tip ta' munzelli li jiċċarġjaw, magni tal-bejgħ ta 'self-service, gabbani u terminali oħra tas-server.
Jekk għandek bżonnijiet oħra, jekk jogħġbok ikkuntattjana, aħna nippersonalizzaw is-soluzzjoni l-iktar adattata għall-wiri tal-kristall likwidu skont il-bżonnijiet tiegħek.
Karatteristika tal-prodott
10.1 "TFT LCD Panel
1280 * 800 Riżoluzzjoni
Użat fil-beraħ, il-luminożità minn 500nits għal 1500 nits mhux obbligatorji
Pannell tal-touch kapaċitativ, miksi b'2mm tal-ħġieġ ittemprat solidu u affidabbli għall-prova tal-vandali
VGA HDMI DVI USB Interface
Mainboard ta 'Prestazzjoni Għolja, Operazzjoni Kontinwa 7/24
Appoġġ għal vultaġġ wiesa '12 -24V
Bezel ta 'quddiem ultra-irqiq ta' 3mm, ideali għall-immuntar inkorporat
Pannell ta 'Quddiem IP55 Prevenzjoni tat-trab li ma jgħaddix ilma minnha
Operazzjoni ta 'temperatura wiesgħa: -10 - 50 ° C
|
Product specification |
|
|
LCD panel |
|
|
Panel size |
10.1" |
|
Resolution |
1280*800 or 1024*600 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
1000 nits (can be customized) |
|
Contrast ratio |
1000:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
Capacitive Touch (10 points ) |
|
Surface Hardness |
7H |
|
Luminousness |
90% |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Working Life |
>50 million times |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
|
Support OS |
Windows ,HDMI, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V, 50-60Hz |
|
Working voltage |
DC 12-24V |
|
Power consumption |
≤35W |
|
Enclosure |
|
|
Material |
Aluminum Alloy |
|
Color |
Black, Silver or customized |
|
VESA mounting |
75x75mm/100x100mm |
|
IP grade |
Front panel IP55 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 50°C, storage: -20 to 80°C |
|
Relative humidity |
operating: -5% to 95%, storage: -5% to 95% |
|
Packing Details |
|
|
Gross weight |
about 4kg |
|
Accessories |
Power adapter, VGA cable, USB touch cable, embedded screws |
|
Other |
|
|
Mounting |
embedded mounting screws |
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, 3C, RoHS |
