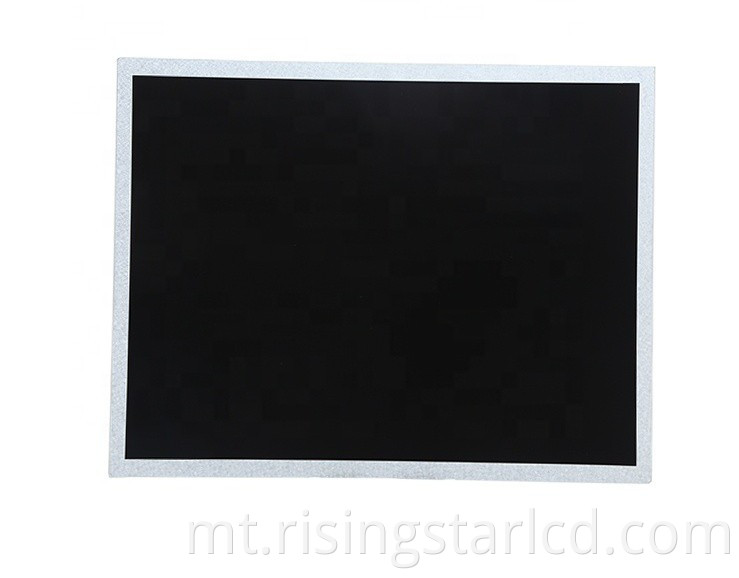

15 "LCD Panel LCD 1500CD / M2
1 Introduzzjoni
Huwa Matrix Attiv tal-Kulur Attiv Transistor tal-Films (TFT) Display Crystal Liquid (LCD) li juża TFT silikon amorfu bħala apparat li jaqleb. Huwa magħmul minn pannell LCD TFT, sistema ta 'backlight, sewwieq tal-kolonna u ċirkwit tas-sewwieq tar-ringiela. Dan it-TFT LCD għandu żona ta 'wiri attiva mkejla dijagonali ta '15 .0 pulzier b'riżoluzzjoni (1024 orizzontali b'768 pixel vertikali).
2 karatteristiċi
15.0 ”TFT LCD Panel
Sistema ta 'backlight LED
Riżoluzzjoni ta '1024x768 pixel appoġġjata
Kompatibbli mal-istandard ROHS
|
Size |
15inch |
|
Resolution |
1024*768 |
|
Pixel Pitch (H x V) |
0.297 x 0.297mm |
|
Pixel Arrangement |
R.G.B. Vertical Stripe |
|
Display Mode |
Normally White |
|
Brightness(nits) |
1000-1500 |
|
Contrast Ratio |
800:1 |
| Input Voltage | 3.3V |
| View Angle(L/R/U/D) | 80/80/80/80 |
| Response Time(ms) | 16ms |
| Optical mode | TN |
| Operating Temperature | -20-70° |
| Storage Temperature | -30-80° |
| Interface | LVDS/8-bit |
| Lamp type | LED |
| LED Life Time(Hrs) | 30,000Hours |
| Active Area(mm,H*V) | 304.13*228.10 |
| Outline Dimension | 326.50*253.50*12.00 |
|
Weight |
960g |
|
Support Color |
16.2M |
|
Optimum Viewing Direction |
6 o’clock |
|
Surface Treatment |
Anti-glare, Hard-Coating (3H) |
|
Authentication |
ROSH/UL |
| Size | 15inch |
| Panel item | RS150NET-N15 |
| Panel type | a-Si TFT-LCD |
| Display mode | IPS,Normally black，transmissive display |
| Pixels | 1024*768 |
| brightness | 1500cd/m2 |
| Constrast Ratio | 800：1 |
| View angle | 80/80/80/80 |
| View area | 313.55*2378.25mm(H*V) |
| Dispaly area | 304.128*228.096mm(H*V) |
| Outline Size | 326.5*253.5*10mm(H*V*D) |
| Signal Type | LVDS |
| Working freqyency | 60Hz |
| Working temperature | 0- 65.0ﾟC |
| Storage Temperature | -20- +65.0ﾟC |
| Backlight Type | WLED |
| Display color | 16.7m |
| Surface Treatment | Haze ,Hard coating(3H) |
| Drive-screen Voltage | 3.3V |
| Backlight Power Consumption | 13w |
| Weight | 1kgs |
