Mudell Nru.: C101UAN01.0

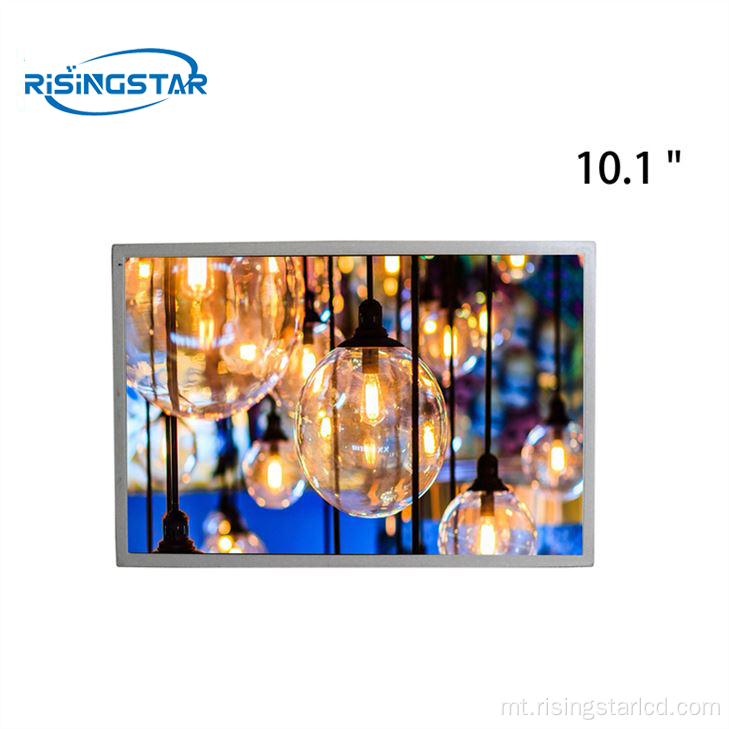

10.1 pulzier AUO C101UAN01.0 Brightness 1400nits Sunlight li jista 'jinqara TFT LCD Modulu.
Aqra taħt ix-xemx, ċar, iġġib esperjenza viżwali differenti.
Riċerka u Żvilupp Indipendenti tal-Bord tal-Kontroll tat-Temperatura u l-Bord tal-Kontroll tal-Veloċità tal-Fann Skond it-temperatura interna aġġusta awtomatikament f'temperatura ta '-30 ° C-85 ° CProlong il-ħajja tas-servizz tal-magna kollha.
| brand | AUO | Model name | C101UAN01.0 |
| size | 10.1" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1920(RGB)×1200 [WUXGA] 224PPI | Pixel configuration | RGB vertical bar |
| Display size | 217.44 × 135.9 mm (H×V) | Appearance of size | 236.96 × 163 mm (H×V×D) |
| Brightness(cd/m²) | 1400 cd/m² (Typ.) | contrast | 5000 : 1 (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Apply to | Digital signage and outdoor highlighting and Car show |
| Signal system | LVDS (2 ch, 8-bit) , 60 pins ,FPCtermina |
|
|
| Maximum rated | Storage temperature: -40 ~ 95°C Working temperature: -30 ~ 85°C |
|
|
Hot Tags: 10.1 "AUO C101UAN01.0 TFT LCD Modulu, Ċina, Fabbrika, irħisa, Prezz, Customized, Kwotazzjoni, Window li Jiffaċċjaw LCD, skrins tal-wiri LCD, wirjiet LCD għoljin għoljin, 3000 nits LCD panel, 12 1 1 pulzier LCD, Sunlight Screen , Wiri tal-Windows Diġitali , pannell LCD, modulu LCD, wirja ta 'luminożità għolja.
