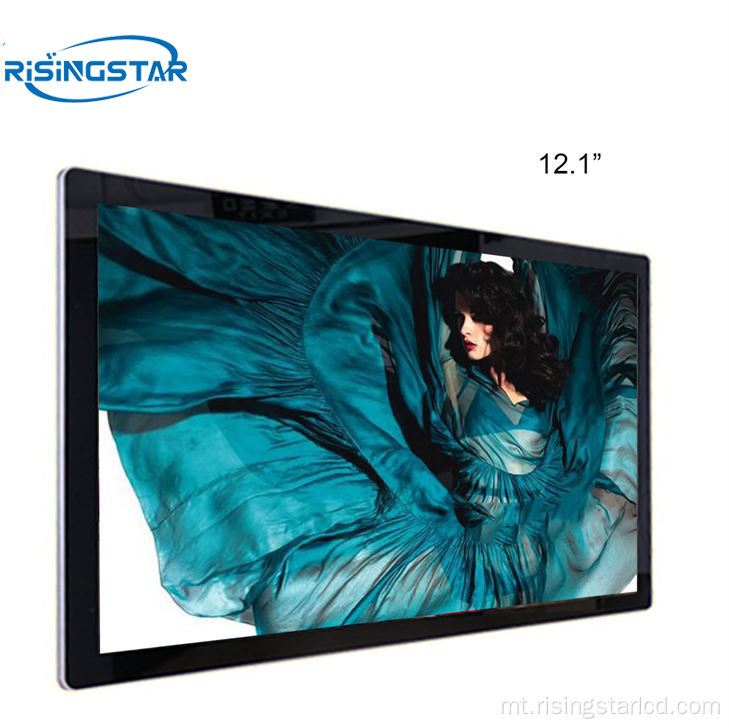

Mudell Nru.: AV121X0M-N10
12.1 pulzier Innolux AV121X0M-N10 Luminożità Għolja 600Nits TFT LCD Panel tax-Xemx Viżibbli.
Modulu LCD ta '12 .1 "bit-teknoloġija A-Si TFT-LCD, mgħammra b'backlight WLED, bla backlight drive, l-ebda touch. Il-karatteristiċi tipiċi tiegħu huma: luminożità għolja, backlight LED abjad, RGB 2 tad-dominju. Strixxa. Topera minn -20 sa 85 ° C u huwa maħżun fi -30 sa 85 ° C. Dan il-mudell huwa adattat għal applikazzjonijiet industrijali. Backlight Dan il-prodott juża 8S6P WLED Side Dħul Sors tad-dawl, il-ħajja tas-servizz tas-sors tad-dawl hija ta '30k siegħa, mingħajr backlight drive.
L-istess mudell ta 'daqs: Rv121x0m-N01
| brand | BOE | Model name | RV121X0M-N01 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 XGA 105PPI | Pixel configuration | RGB vertical bar |
| Display Area | 245.76×184.32mm(H×V) | Surface treatment | Clear |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Outline dimension | 260.5×204×9.5mm(H×V×D) |
| Signal interface | LVDS (1 ch, 6-bit),20 pins ,erminal |
|
|
| work environment | Storage temperature: -40 to 80 °C Operation Temperature: -30 to 70 °C |
|
|
| brand | BOE | Model name | AV121X0M-N10 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 XGA 105PPI | Pixel configuration | RGB vertical bar |
| Display Area | 245.76×184.32mm(H×V) | Surface treatment |
|
| Open zone | 257.68×187.32mm(H×V) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Brightness(cd/m²) | 600 cd/m² (Typ.)or customized | Outline dimension | 265.5×206.3×13.5mm(H×V×D) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
|
|
| Signal interface | 30 pins LVDS (1 ch, 8-bit),erminal |
|
|
| work environment | Storage temperature: -20 to 85 °C Operation Temperature: -30 to 85 °C |
|
|
