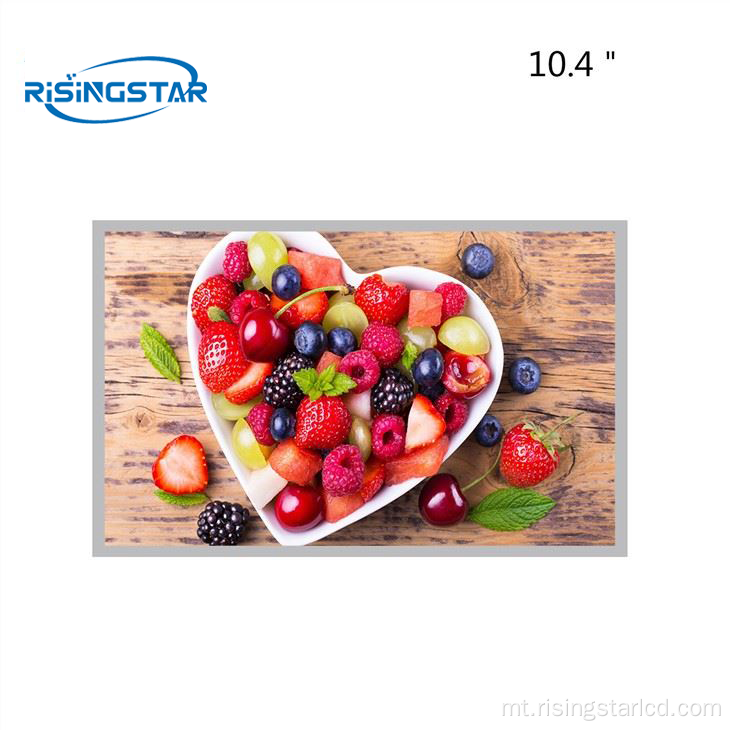

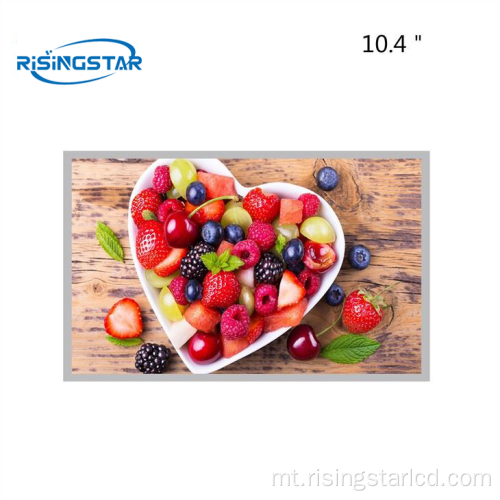

BOE BA104S01-100 Brightness 500Nits TFT-LCD Panel

Min. Ordni:1 Piece/Pieces

Attributi tal-Prodott
Ippakkjar u Kunsinna
Other information

Attributi tal-Prodott

Mudell Nru.: BA104S01-100

Ippakkjar u Kunsinna

Unitajiet tal-Bejgħ:

Piece/Pieces

Introduzzjoni tal-Prodott

BA104S01-100 huwa prodott tal-modulu LCD ta '10 .4 pulzier imniedi minn Boe Technology Group Co., Ltd. (BOE) Uża teknoloġija A-Si TFT-LCD. Huwa mgħammar bil-backlight wled, bla backlight drive u bla touch. BA104S01-100 juri riżoluzzjoni ta '800 (RGB) × 600 (SVGA), proporzjon ta' aspett ta '4: 3 (wisa': għoli), u l-pixel huma rranġati fi strixxi vertikali RGB, skond l-ispeċifikazzjoni tal-prodott bil-verżjoni Nru. .1 Meħlus minn BOE fit-12 ta 'Diċembru, 2014. Id-daqs taż-żona tal-wiri tiegħu huwa 211.2 × 158.4 (wisa' × għoli) mm, id-daqs viżwali huwa 215.0 × 162.0 (wisa '× għoli) mm, id-daqs tad-dehra huwa 236 × 176.9 (wisa' × għoli) × 5.9 (ħxuna) mm, it-trattament tal-wiċċ huwa ċar, il-piż nett tal-prodott huwa 288g (tip.). Backlight Dan il-prodott juża sors tad-dawl tad-dħul tal-ġenb 6S6P WLED (fuq), il-ħajja tas-sors tad-dawl hija 50k siegħa, l-ebda drive tal-backlight. BA104S01-100 jadotta l-interface tas-sinjal LVDS (1 CH, 6/8-bit), total ta '20 pin, jadotta konnessjoni terminali, il-vultaġġ tal-iskrin tas-sewqan huwa 3.3V (tip.). Ir-rata ta 'aġġornament vertikali tipika tagħha FV hija 60Hz. Jopera f'temperatura ta '-20 ° C sa 70 ° C u jaħżen f'temperatura ta' -30 ° C sa 80 ° C. Dan il-mudell huwa rrakkomandat għall-użu f'immaġini industrijali u mediku minħabba l-backlight LED abjad tiegħu, aktar minn 50,000 siegħa ta 'ħajja, flip terminali, 6/8 bits ta' skala griża fakultattiva, u karatteristiċi oħra.

brand	BOE	Model name	BA104S01-100
size	10.4 inch	Screen type	a-Si TFT-LCD,LCD module
resolution ratio	800(RGB)×600 [SVGA] 96PPI	Pixel configuration	RGB vertical bar
Display Area	211.2×158.4 mm (H×V)	Surface treatment	Clear
Visual size	215.0×162.0 mm (H×V)	Contrast Ratio	800:1 (Typ.) (TM)
Brightness(cd/m²)	500cd/m²(Typ.)or customized	Outline dimension	236×176.9×5.9 mm (H×V×D)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Signal interface	LVDS (1 ch, 6/8-bit) ,erminal, 20 pins
work environment	Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C

Dawn li ġejjin huma l-istess mudelli u parametri ta 'daqs

brand	BOE	Model name	AV104X0M-N10
size	10.4 inch	Screen type	a-Si TFT-LCD,LCD module
resolution ratio	1024(RGB)×768 (XGA) 123PPI	Pixel configuration	RGB vertical bar
Display Area	210.4 × 157.8 (H×V) mm	Surface treatment	/
Visual size	215.4 × 161.8 (H×V) mm	Contrast Ratio	1100:1 (Typ.) (TM)
Brightness(cd/m²)	600cd/m²(Typ.)or customized	Outline dimension	230 × 180.2(H×V)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Signal interface	LVDS (1 ch, 6/8-bit) ,erminal, 20 pins
work environment	Storage temperature: -40 to 95 °C Operation Temperature: -30 to 85 °C

brand	BOE	Model name	TDA104-001V02
size	10.4 inch	Screen type	a-Si TFT-LCD,LCD module
resolution ratio	1024(RGB)×768 (XGA) 123PPI	Pixel configuration	RGB vertical bar
Display Area	210.4 × 157.8 (H×V) mm	Surface treatment	/
Visual size	/	Contrast Ratio	1000:1 (Typ.) (TM)
Brightness(cd/m²)	900cd/m²(Typ.)or customized	Outline dimension	235×173×10.5mm(H×V×D)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Signal interface	LVDS (1 ch, 8-bit) ,erminal, 20 pins
work environment	Storage temperature: -55 to 85 °C Operation Temperature: -40 to 80 °C

10.4 inch panel
