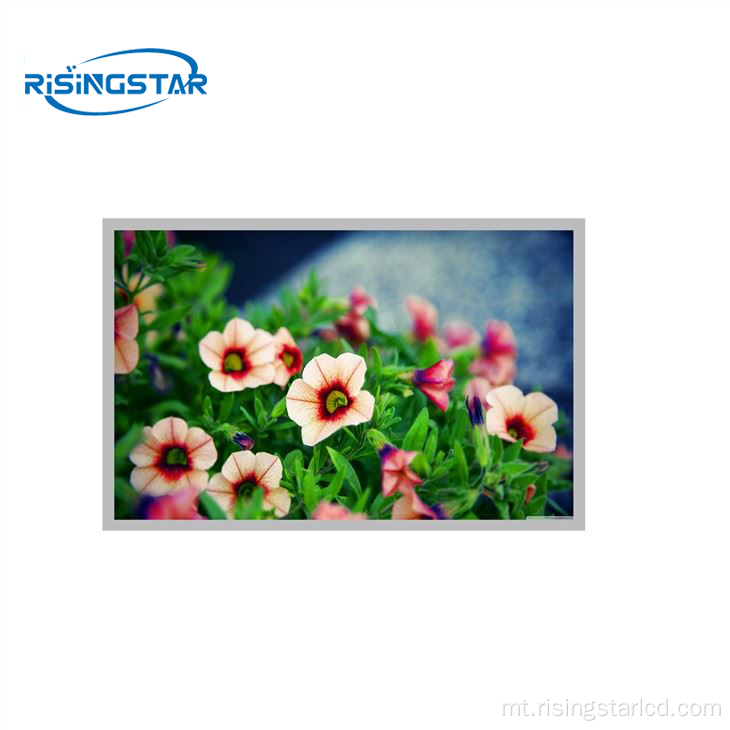

LQ150X1LW96 Sharp TFT LCD Panel LVDS Screen

Min. Ordni:1 Piece/Pieces

Attributi tal-Prodott
Ippakkjar u Kunsinna
Other information

Attributi tal-Prodott

Mudell Nru.: LQ150X1LW96

Ippakkjar u Kunsinna

Unitajiet tal-Bejgħ:

Piece/Pieces

Introduzzjoni tal-Prodott

Ir-riżoluzzjoni tal-wiri LQ150X1LW96 hija 1024 (RGB) × 768 (XGA), il-proporzjon tal-aspett huwa 4: 3 (wisa ': għoli), u l-pixel huma rranġati fi strixxi vertikali RGB. Id-daqs taż-żona tal-wiri ta 'LQ150X1LW96 huwa 304.128 × 228.096 (w × h) mm, id-daqs viżibbli huwa 307.4 × 231.3 (w × h) mm, u d-daqs estern huwa 326.5 (w) × 253.5 (h) × 10.1 (d) mm. Finish Matte, Kisi iebes (3H), Piż Nett 950g (Max.)

Il-backlight jadotta sors ta 'dawl tat-tip tat-tarf, it-temperatura operattiva tagħha hija -20 ~ 70 ° C, u t-temperatura tal-ħażna tagħha hija -25 ~ 70 ° C, li hija adattata għall-immaġini industrijali u mediċi.

brand	Sharp	Model name	LQ150X1LW96
size	15inch	Screen type	a-Si TFT-LCD,LCD module
resolution ratio	1024(RGB)×768 [XGA] 85PPI	Pixel configuration	RGB vertical bar
Display Area	304.128×228.096mm(H×V)	Surface treatment	Fog surface，Hard coating (3H)
Visual size	307.2×231.1mm(H×V)	Contrast Ratio	1500:1 (Typ.) (TM)
Brightness(cd/m²)	500cd/m²(Typ.)or customized	Outline dimension	326.5×253.5×10.1(H×V×D)mm
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	work environment	Storage temperature: -25 to 70 °C Operation Temperature: -20 to 70 °C
Signal interface	LVDS (1 ch, 6/8-bit),erminal,20 pins
supply voltage	3.3V (Typ.)

wiri LCD

Q ： Int Manifattur (Fabbrika)?

A ： Iva, aħna. Servizz OEM / ODM ukoll disponibbli hawn. Huwa l-pjaċir tagħna li nipprovdu l-aħjar soluzzjoni għalik.

Q ： Nista 'nixtri kampjun għall-ordni tiegħi?

A ： Iva, jekk jogħġbok tħossok liberu li tikkuntattjana.

LCD ta 'luminożità għolja
